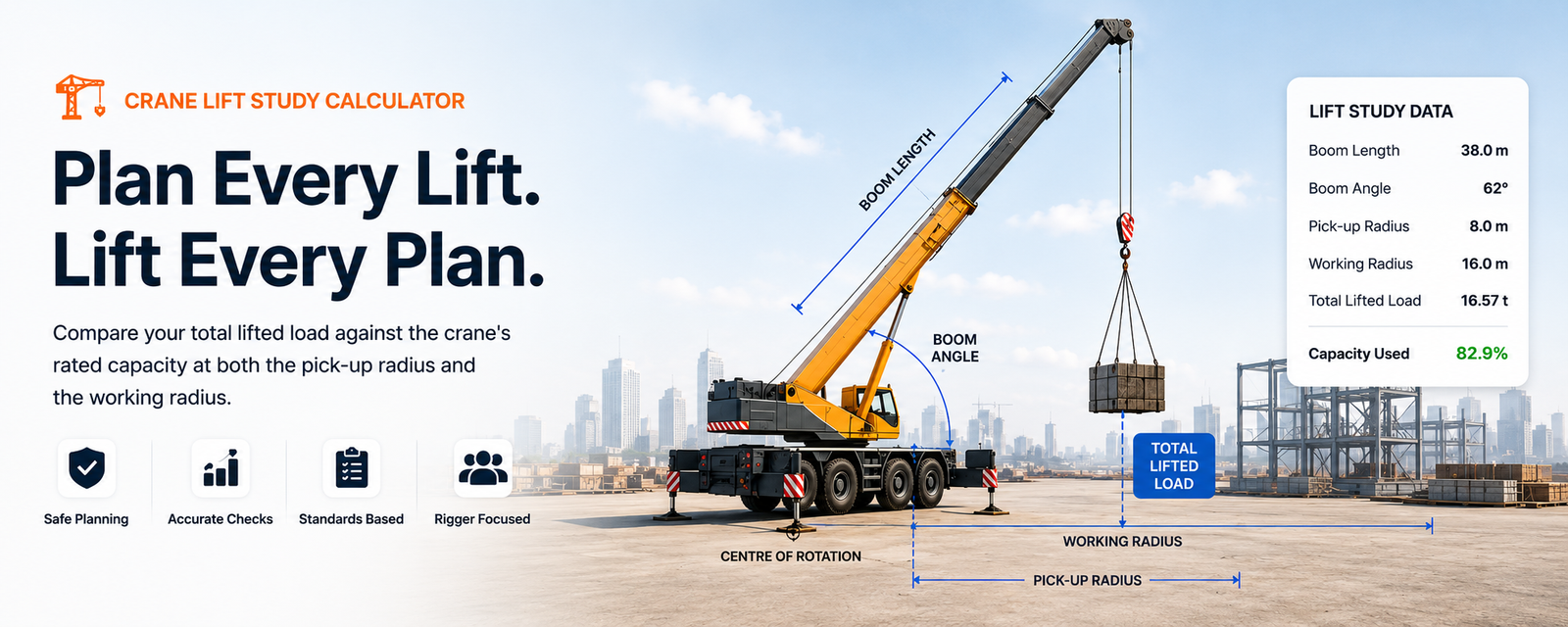

Crane Lift Study Calculator

Compare total lifted load against rated crane capacity at the pick-up radius and working radius.

Lift Parameters
Enter crane, load, and radius details below.

Load Details

t
kg
kg
kg
kg

Enter hook block, shackles, slings, spreader beams and other lifting gear in kilograms. The calculator converts these values to tonnes automatically.

Crane Load Chart Capacity

Boom length and boom angle are recorded to match the crane load chart configuration. They do not calculate crane capacity. Always enter the rated capacity from the manufacturer load chart for the exact crane setup.

m

Distance from crane centreline to the load at the pick-up position.

t

Capacity copied from the crane load chart for the pick-up radius and exact crane setup.

m

Distance from crane centreline to the load at the final landing or working position.

t

Capacity copied from the crane load chart for the working radius and exact crane setup.

The rigger must measure each radius and then enter the rated crane capacity from the manufacturer load chart for that exact radius, boom length, boom angle, counterweight, outrigger setup and crane configuration. This calculator does not calculate crane capacity from radius.

Lift Study Results

Enter parameters and calculate to see results.

What Is a Crane Lift Study Calculator?

A crane lift study calculator is a critical planning tool used by riggers, crane operators, and site supervisors. It helps compare the total lifted load against the crane's rated capacity at both the initial pick-up radius and the final working radius.

By evaluating these two points, the calculator determines the overall capacity percentage, ensuring the crane stays safely within its manufacturer-specified operating limits throughout the entire swing path.

Why Rated Crane Capacity Must Be Entered

A crane does not have one fixed lifting capacity. Its safe working capacity changes with radius, boom length, counterweight, outrigger setup and crane configuration. The farther the load is from the crane centreline, the lower the available lifting capacity normally becomes. This calculator therefore compares the total lifted load against the rated crane capacity at both the pick-up radius and the working radius. The highest capacity used controls the overall lift status.

Why Boom Length and Boom Angle Matter

Boom length and boom angle help identify the exact crane configuration used for the lift study. A longer boom or lower boom angle normally reduces available lifting capacity, but this calculator does not estimate crane capacity from geometry. The rigger must enter the rated capacity from the manufacturer crane load chart for the exact boom length, radius, counterweight and outrigger setup.

Why the Rated Capacity Must Be Entered Manually

Two cranes with the same radius can have very different capacities depending on boom length, boom angle, counterweight, outrigger setup, fly jib, ground condition and manufacturer limits. For this reason, the calculator only checks the lifted load against the rated capacities entered by the rigger.

Why Radius Alone Does Not Decide Capacity

The rigger or lift planner must use the correct manufacturer load chart for the exact crane model being used. Entering only a radius into a calculator cannot determine capacity because different cranes (even of the same tonnage class) have different boom weights, outrigger spans, counterweight configurations, and structural limits. Always refer to the exact OEM load chart to find the capacity for your measured radius.

Calculator Screening Bands Near Rated Capacity

This calculator uses 90–97.5% as an approach band, 97.5–100% as critical, and over 100% as STOP. These are screening bands only; the OEM load chart, operating procedures and site lift plan control.

Why Radius Matters

In crane operations, capacity is directly tied to the working radius (the horizontal distance from the crane's centre of rotation to the centre of gravity of the load).

  • As the boom extends or lowers to reach further away, the crane's lifting capacity reduces significantly due to leverage and tipping forces.
  • Even a small increase in radius (for example, drifting a load outwards to clear an obstacle) can cause the capacity to drop below the weight of the load, risking a structural failure or a tip-over.

What Must Be Included in Total Lifted Load

The crane must lift everything hanging from the boom tip, not just the object being moved. The total lifted load must include:

Load Weight (The item being lifted)
Hook Block / Overhaul Ball
Shackles and Hardware
Slings (Wire rope, synthetic, chain)
Lifting Beams
Spreader Beams
Other Rigging Gear (taglines, blocks)

Common Mistakes

Using only the main load weight and forgetting to add the rigging and hook block.
Using the wrong chart radius (e.g., looking at the 10m chart when the load will swing out to 11m).
Using an estimated radius instead of measuring the actual distance on site.
Ignoring the working radius and only calculating the pick-up.
Assuming that being under 100% automatically means the lift can proceed (wind, ground conditions, and swing dynamic loads require safety margins).
Not checking ground bearing pressure under the outriggers.

Planning Note

This calculator provides planning estimates only. Always verify results against the exact crane model, boom length, counterweight, outrigger setup, ground conditions, site rules, and manufacturer load chart before executing any lift.

Worked Capacity Check

For a 10 t main load plus 1,000 kg hook block, 500 kg lifting gear and 500 kg spreader, total lifted load is 12.00 t in Metric mode. Against entered capacities of 15 t at pick-up and 12 t at final radius, utilisation is 80% and 100%; the final radius controls. This arithmetic does not approve the lift.

Frequently Asked Questions

What are the safe working-distance requirements from overhead power lines?

The safest option is to have the power line isolated, de-energised, visibly grounded and confirmed safe by the electricity utility or authorised electrical person before crane operations begin. Treat every overhead line as energised unless this confirmation has been obtained.

The minimum clearance applies to every part of the operation: boom, boom head, jib, counterweight, hoist rope, hook block, rigging, tag lines, suspended load, possible load swing, crane movement and the maximum working radius in the defined work zone.

Minimum clearance distances while operating near energised power lines

Nominal line voltageMinimum clearance in feetMinimum clearance in metres
Up to 50 kV10 ft3.1 m
Over 50 kV to 200 kV15 ft4.6 m
Over 200 kV to 350 kV20 ft6.1 m
Over 350 kV to 500 kV25 ft7.6 m
Over 500 kV to 750 kV35 ft10.7 m
Over 750 kV to 1,000 kV45 ft13.7 m
Over 1,000 kVSet by the utility owner/operator or a qualified registered professional engineer

Unknown voltage and encroachment controls

Do not guess. Contact the utility or line owner, confirm nominal voltage and establish the exclusion zone before work. Until confirmed, use the larger conservative clearance required by the applicable site procedure. OSHA permits a 20 ft (6.1 m) option for lines up to 350 kV when its voltage-specific Table A option is not used. For lines over 350 kV to 1,000 kV, the relevant high-voltage provisions use 50 ft (15.2 m) unless the approved voltage-specific process is followed.

If any part could enter the required clearance zone, stop planning, contact the utility, de-energise and visibly ground where practicable, hold a dedicated planning meeting, establish visible barricades or warning lines, use a dedicated spotter where required, use non-conductive tag lines, apply specified range-limiting or warning devices and follow the most restrictive mine, utility, lift-plan or site requirement. A proximity alarm, insulated link or spotter does not permit ignoring minimum clearance.

Minimum clearance while travelling with no load and the boom lowered

Nominal line voltageMinimum clearance in feetMinimum clearance in metres
Up to 0.75 kV4 ft1.2 m
Over 0.75 kV to 50 kV6 ft1.8 m
Over 50 kV to 345 kV10 ft3.1 m
Over 345 kV to 750 kV16 ft4.9 m
Over 750 kV to 1,000 kV20 ft6.1 m
Over 1,000 kVSet by the utility owner/operator or qualified registered professional engineer

This travelling table applies only with no load, the boom lowered sufficiently, a safe route identified, speed controlled and a dedicated spotter used where required. Apply any greater distance required by the mine, utility or site.

Source: OSHA 29 CFR 1926.1407–1926.1411, including Table A and Table T. The electricity supplier, national legislation, mine or site procedure may require greater clearances.

What is the maximum wind speed allowed for crane operations?

There is no single wind-speed limit suitable for every crane, configuration and suspended load. The maximum permitted speed is the lowest limit specified by the manufacturer, operating manual, load chart, boom or jib configuration, approved lift plan, risk assessment, mine or site procedure, appointed person or lifting supervisor, and the load's wind area and shape.

For general site planning, 9.8 m/s may be used as a conservative stop-work reference only when no lower limit applies. This is approximately 35 km/h, 22 mph or 19 knots; it is not a universal manufacturer limit.

Stop earlier when the manufacturer specifies a lower limit, a jib or personnel lift has stricter limits, a large-area load swings or rotates, gusts exceed sustained wind, boom-head wind exceeds ground readings, visibility deteriorates, or the operator or lift supervisor considers control unsafe. Never transfer a higher limit from another crane or configuration.

Why is it dangerous to operate a crane in high winds?

Wind acts on the boom, jib, ropes, hook block, rigging and suspended load. Wind pressure rises approximately with the square of wind speed, so doubling wind speed can produce roughly four times the pressure.

Wind and gusts can push a load sideways, increase effective radius, side-load the boom, cause swing or rotation, shock-load rigging, reduce stability, overload components and cause collision, overturning or structural failure. Large sheets, panels, tanks and fabricated structures may be unsafe at lower speeds than compact heavier loads.

Assess both load mass and effective wind-catching area. Use a suitable anemometer at the most representative location, preferably near boom-head height, rather than relying only on a ground-level weather app. Stop whenever positive load control cannot be maintained.

When must crane operations stop because of lightning?

Stop immediately when lightning enters the site's shutdown radius, an alarm activates, thunder is heard, lightning is seen, a storm approaches or the responsible authority issues a stop-work instruction. A raised boom, ropes, load and surrounding ground can conduct dangerous electrical energy.

Follow the mine or site lightning procedure. Land the load safely only if this does not increase exposure, place the crane in its manufacturer-approved safe configuration, keep people away from the crane and move them to a substantial building or enclosed hard-topped vehicle. Do not shelter beneath the crane or nearby isolated structures.

Resume only after the site all-clear. Without a formal system, use a conservative minimum wait of 30 minutes after the last thunder or observed lightning, restarting the period if either recurs.

What weight must be included in the total lifted load?

Include the load or equipment, hook block, headache ball where applicable, slings, shackles, spreader or lifting beam, equaliser beams, lifting frame, suspended chain blocks or lever hoists, rigging hardware, load cells, special attachments and every other item suspended from the hook.

Use verified weights wherever available. Compare the complete total with the manufacturer's rated capacity for the exact radius, boom length and angle, outrigger and counterweight configuration, reeving, operating sector, jib, ground and wind conditions.

Why must crane capacity be taken from the load chart at the exact operating radius?

A mobile crane has no single fixed lifting capacity. Capacity varies with operating radius, boom length and angle, outrigger extension, counterweight, boom or jib configuration, reeving, operating sector, ground support and wind.

Available capacity normally decreases as radius increases. Use the manufacturer load chart for the exact crane configuration and actual measured radius; never estimate capacity from the crane's maximum advertised tonnage.

What ground and outrigger checks are required before lifting?

Confirm ground capacity and outrigger reactions; identify underground services, voids, trenches, culverts and disturbed ground; level the crane within manufacturer tolerance; extend outriggers to match the selected chart; and use suitable mats, pads or engineered support fully seated on the supporting surface.

Maintain required setbacks from excavations and slopes, monitor for settlement and stop immediately if an outrigger, mat or surface moves. A competent person must verify ground conditions; critical or high-load lifts may require engineering verification.

Crane radius and boom geometry

Use this schematic to identify the calculator inputs and how they relate. It is explanatory and not a fabrication, installation or lift-plan drawing.

Crane radius and boom geometryA crane boom diagram labelling boom length, boom angle, operating radius, hook load and total lifted load.boom length Bboom angleoperating radius Rhook lineload W
