Crane Lift Study Calculator
Check entered manufacturer chart capacities at pick-up and final radius.
View CalculatorSmart tools for better decisions
Calculate outrigger ground bearing pressure in tons per square meter for mobile crane lifts, spreader mats and critical lift planning.
Total crane weight in tonnes
Weight of the load being lifted
Length of one outrigger mat
Width of one outrigger mat
Enter parameters and calculate to see results.

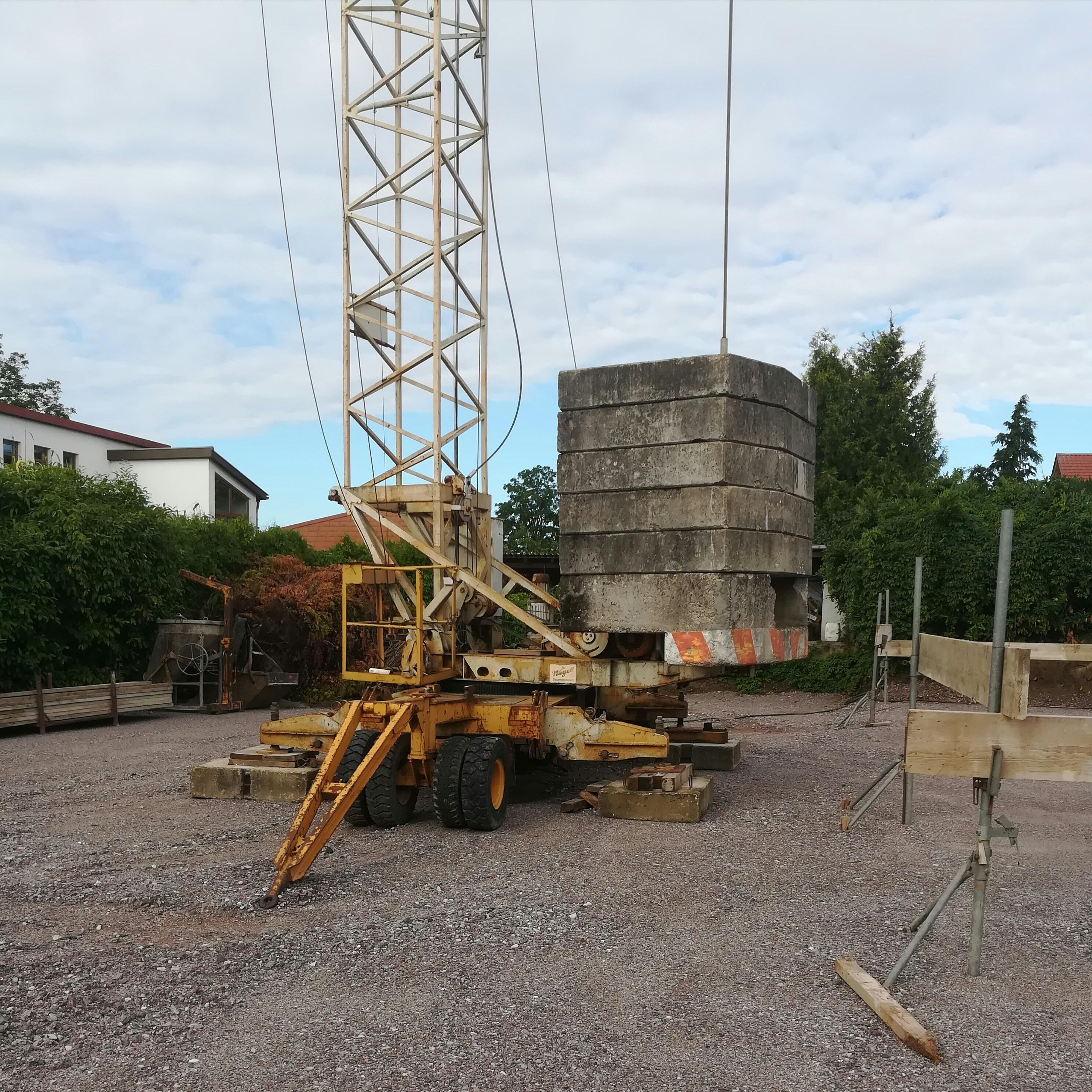

Ground bearing pressure is calculated using a simple formula: Load ÷ Contact Area. When a crane lifts a load, the combined weight of the crane, the load, and all rigging is transferred through the outriggers to the ground.
To get an accurate pressure reading, every piece of weight that transfers to the ground must be accounted for. The total considered load includes:
The total weight of the crane, including all counterweights installed for the lift.
The actual weight of the object being lifted.
The weight of the hook block, slings, shackles, and any spreader bars used.
Large steel or timber mats can weigh several tonnes and add to the total ground force.
Why it matters: Forgetting items like a heavy hook block or spreader beam leads to underestimated ground pressure, which can cause ground failure. Always use actual weights when available.
Crane weight: 48 t
Load weight: 28.5 t
Hook block: 1.5 t
Lifting gear: 0.54 t
Mat size: 2 m × 2 m = 4 m² per mat
Total considered load48 + 28.5 + 1.5 + 0.54 = 78.54 t
Pressure = 78.54 ÷ 4 = 19.64 t/m²
Pressure = 78.54 ÷ 8 = 9.82 t/m²
The displayed cases compare average pressure using simplified load distribution. They do not model actual manufacturer outrigger reactions, mat bending, layered soil response, settlement, slope, drainage, voids or local bearing failure. Use the correct crane data and a competent ground assessment before the lift.
It is the average load divided by the contact area used in the selected screening case. It is not a prediction of every local stress beneath a mat.
No. It conservatively places the entered considered load on one mat. Use manufacturer outrigger reactions or engineer-approved lift data when available.
Real reactions vary with crane configuration, radius, slew position, load path, setup and ground deformation. Equal sharing is only a simplified comparison case.
Include the entered crane and lifted loads plus applicable hook block, rigging, spreader and mat weights. Confirm the required reaction basis for the actual crane.
Not for a critical decision. Soil layers, fill, groundwater, settlement and local bearing failure require competent site-specific assessment.
Voids, tanks, utilities, trenches and previously disturbed ground can reduce support or fail locally even when average pressure appears acceptable.
No. A larger area reduces average pressure but does not by itself verify mat strength, load distribution, edge distance, settlement or underlying ground capacity.
Follow the crane manufacturer, lift plan and site rules. A competent person or qualified engineer should verify the ground and support system where required.
Use the applicable manufacturer instructions, approved drawings and site procedures together with these primary safety references.
Check entered manufacturer chart capacities at pick-up and final radius.
View CalculatorEstimate symmetric sling-leg tension from angle measured from horizontal.
View CalculatorEstimate steel load weight for preliminary lifting inputs.
View CalculatorEstimate concrete volume where an engineered support design specifies concrete work.
View CalculatorUse this schematic to identify the calculator inputs and how they relate. It is explanatory and not a fabrication, installation or lift-plan drawing.
